The Fumot T9000 sells itself on a 2+10 refill, big capacity and a rainbow light show — the spiritual sequel to the Tornado 9000. We took one apart to check the battery, the real capacity, and whether the “2+10” is as reusable as it sounds.
Quick answer: The Fumot T9000 is a cylindrical 2+10 device — a 2 mL atomizer fed by a 10 mL refill bottle — with six RGB LEDs around the base. Three things our teardown surfaces that the box doesn’t: the battery is marked 650 mAh but the cell inside is an 18250 rated 600 mAh; the kit holds more e-liquid than the 2+10 label implies (we measured roughly 16 mL of capacity in total); and once the 10 mL bottle is assembled into the device it can’t be pulled back out — so on the unit we examined it behaves like a one-time device, not a re-dockable refill. On the plus side, the board carries real protection (short-circuit, over-puff, over- and under-voltage).
The buyer questions, answered
Is the battery really 650 mAh? The device is marked 650 mAh, but the cell we found inside is an 18250 rated 600 mAh — a small overstatement worth knowing if you’re comparing run-time.
How much e-liquid does it actually hold? More than “2+10” suggests. On the unit we examined we measured roughly 16 mL of total capacity (a ~10 mL refill bottle plus a ~6 mL internal reservoir, with the wick holding ~7.8 mL). We’re reporting the measured volume, not making any regulatory conclusion.
Is it a reusable 2+10 or really a disposable? This is the big one. The refill bottle clicks in, but once assembled it can’t be removed — so in practice this is a one-time device dressed as a 2+10, not a re-dockable refill system.
Does the power stay consistent? No. It uses a constant-average-voltage drive, so output sags as the battery drains — we measured about 11.6 W at a full charge dropping off from there. Expect the draw to weaken late in each charge.
What protection features did this unit show? On this unit the board carried genuine protections: short-circuit protection, an over-puff cut-off (~10 s), an over-voltage chip and under-voltage cut-off. One note: the charge function is integrated into the controller, which our teardown found runs warm while charging.
How the FUMOT T9000 Refill Cartridge Works
Quick answer: FUMOT documents the T9000 as a closed 2+10 system. Its official manual shows a vape pen supplied with a separate refill container: remove the silicone suction nozzle, place the refill container into the pod, and use the Type-C port when charging is needed. The manual does not show an open-fill process using bottled e-liquid. On the one retail unit VapeRisk examined, the installed container locked into the assembly and could not be pulled back out.
| Question | What the current evidence shows | What it does not prove |
|---|---|---|
| What comes with the 2+10 system? | FUMOT’s product page describes a 2 mL device plus an additional pre-filled 10 mL cartridge. The official manual depicts the pen and separate refill container before assembly. | It does not establish that every regional pack, seller bundle or later production revision has identical contents. |
| How is the refill container installed? | The manual shows removing the silicone suction nozzle and placing the refill container into the pod. | It does not document puncturing the reservoir, injecting bottled liquid or using a third-party cartridge. |
| Can the cartridge be removed and replaced later? | FUMOT uses “Replaceable Cartridge” wording. On the unit VapeRisk examined, the installed bottle could not be pulled back out. | One sample cannot prove that every T9000 revision is permanently locked or re-dockable. A current revision/SKU map remains unavailable. |
| Which T9000 pods are compatible? | Only the exact T9000 refill container shown by the current official product and manual record is supported here. | Physical fit, seller wording or the FUMOT name does not prove compatibility with T9000 Pro Max, T7000 or another family. |
Official Setup Steps and the Evidence Boundary
- Open the exact package and identify the T9000 vape pen, silicone suction nozzle and refill container shown in the manual.
- Remove the silicone suction nozzle as illustrated.
- Place the supplied refill container into the pod without forcing or modifying the parts.
- Use the Type-C charging connection when charging is needed and follow the exact package instructions.
The official manual ends with normal use; it does not show a second removal or refill cycle. VapeRisk therefore separates the manufacturer’s “Replaceable Cartridge” label from the sample observation that the container locked into the examined unit. Neither record should be stretched into a universal compatibility or lifespan claim.
Why the Battery Labels Need Three Separate Fields
FUMOT’s current product page states 600 mAh. The retail device VapeRisk examined was marked 650 mAh, while the internal 18250 cell was marked 600 mAh. These are three different evidence fields: manufacturer web specification, exterior device marking, and internal component marking. The difference is useful buyer information, but it is not a product-wide defect rate or certification result.
Current First-Party Sources
- FUMOT T9000 product page – 2+10 architecture, Closed Pod System and manufacturer-stated cartridge and battery fields.
- FUMOT T9000 user manual – illustrated refill-container installation and Type-C charging route.
VapeRisk Labs scorecard
| Category | Score | Why |
|---|---|---|
| Protection electronics | 8.0/10 | Confirmed short-circuit, over-puff, over- and under-voltage protection on this unit. |
| “Reusable” honesty | 4.5/10 | The 10 mL bottle can’t be removed once assembled — effectively one-time, not a re-dock. |
| Spec-claim accuracy | 6.0/10 | Cell measures 600 mAh vs 650 mAh marked; capacity is larger than “2+10” implies. |
| Power consistency | 5.5/10 | Constant-average-voltage means output sags as the cell drains. |
| Lights / finish | 7.5/10 | Six RGB LEDs and a textured wrap give it real shelf presence at low cost. |
| Overall build verdict | 6.0/10 | Solid protection and fun lights, undercut by a “2+10” that’s really a sealed one-time device. |
Scores reflect the single unit we examined.
Key specs — claimed vs found on the bench
| Spec | Claimed / marked | VapeRisk Labs teardown (this unit) |
|---|---|---|
| Format | 2+10 (2 mL + 10 mL bottle) | 2 mL atomizer + 10 mL refill bottle; bottle locks in once assembled (confirmed) |
| Price / market | €19.99 MSRP, Germany | — |
| Battery | 650 mAh | 18250 cell, rated 600 mAh (marked) |
| E-liquid | “2+10” | ~16 mL total measured (≈10 mL bottle + ≈6 mL reservoir; wick ≈7.8 mL) |
| Coil | — | single mesh, ≈1.1 Ω (measured) |
| Power | — | ≈12 W, constant-average-voltage; ≈11.6 W at full charge, sags as cell drains (measured) |
| Airflow / draw | — | ≈207–260 Pa (measured) |
| Vapour (TPM) | — | ≈7.9 mg/puff (measured) |
| Charging | ~580 mA | ≈564 mA measured, integrated in the controller (runs warm) |
| Standby draw | — | ≈3 µA (measured) |
| Dimensions | — | 115.5 × Ø32 mm (measured) |
What’s inside

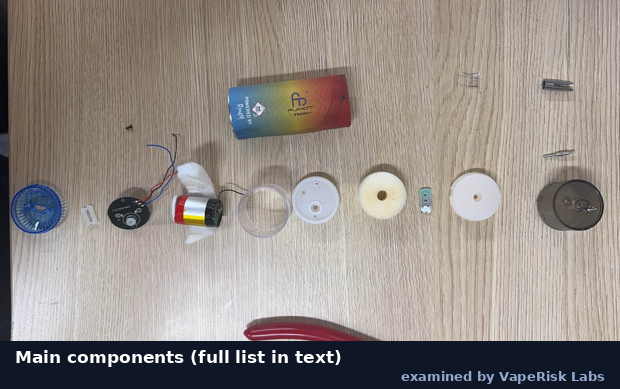

The components — a deliberately low-cost cylinder
Pulled apart, the T9000 is a cost-down cylinder: a textured wrap sticker replaces sprayed paint and UV print, and a clear tube plus battery wrap replaces a moulded battery bracket — both cheaper to build.
Main parts (full list): the 10 mL refill bottle and storage cup (PCTG), the steel pierce tube, the single mesh-coil atomizer and wick, the 18250 cell, the round mainboard, silicone seals and the metal/PC outer shell.

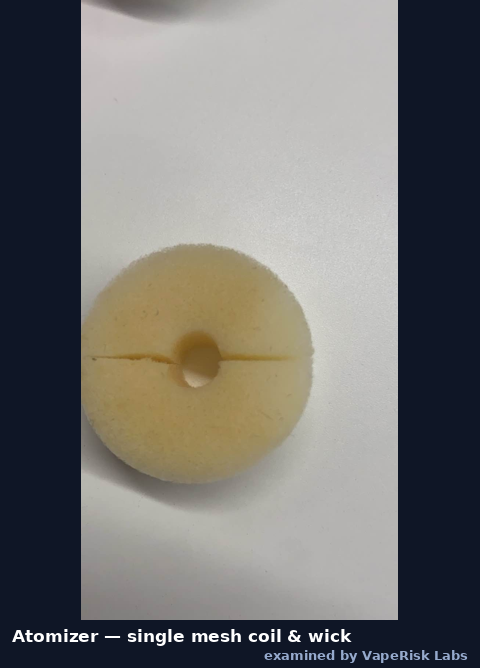

The atomizer
A single mesh coil (≈1.1 Ω) sits in a five-layer wick, fed by a steel pierce tube from the bottle. It’s a straightforward, gentle setup — and the constant-average-voltage drive means the flavour softens as the cell drains.

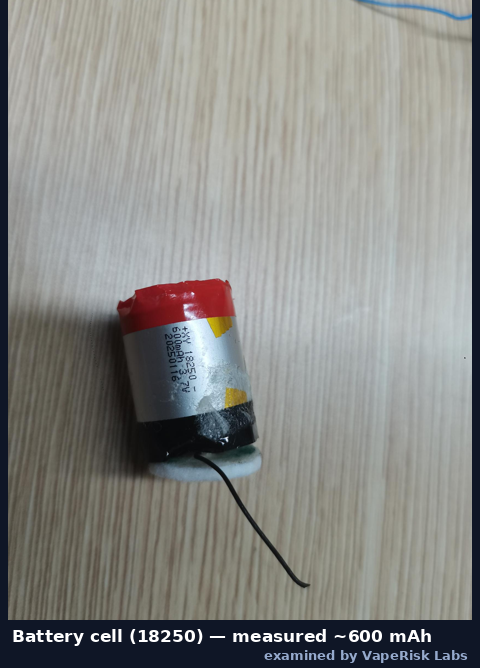

The battery
The cell is an 18250 rated 600 mAh — not the 650 mAh on the marking. We measured standby draw at just ~3 µA.

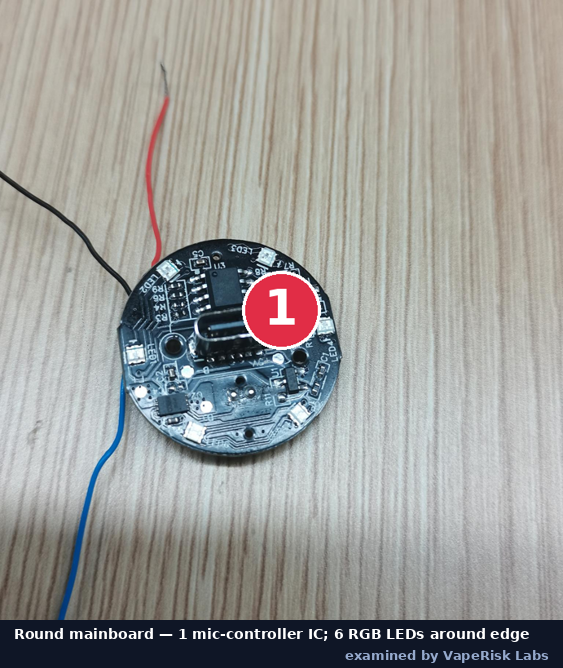

The round mainboard
Because the device is cylindrical, the board is round, ringed by the six RGB LEDs. A single controller IC integrates the microphone trigger, the heater drive and the charge function — cheap and compact, but it’s why charging runs warm.
Mainboard: 1 controller IC (mic + heater + charge integrated); six RGB LEDs ring the edge. Board markings are left visible as teardown evidence.
Safety-related observations (this unit)
These describe the unit we examined and are not a rating for the brand or for other units.
- Protections present: on this unit we observed short-circuit protection, an over-puff cut-off (~10 s), an over-voltage chip, and an under-voltage cut-off (~3.0 V).
- Charging: integrated into the controller; we measured ≈564 mA, and noted the controller runs warm while charging.
- Trigger note: the unit uses a no-element (“empty”) microphone trigger, which our teardown observed can self-trigger on some airflow changes.
Marketing claim analysis — what holds up
| Fumot says | What the teardown shows | Verdict |
|---|---|---|
| “2+10” refill | 2 mL atomizer + 10 mL bottle — but the bottle locks in and can’t be removed | Partly — it’s effectively one-time once assembled |
| 650 mAh | 18250 cell rated 600 mAh | Overstated on this unit |
| Big capacity + lights | ~16 mL total measured; six RGB LEDs | Confirmed (capacity larger than the label implies) |
| (unstated) | Power sags as the cell drains; charging runs warm; cell 600 mAh | The buyer-relevant facts the box leaves out |
How we examined this unit

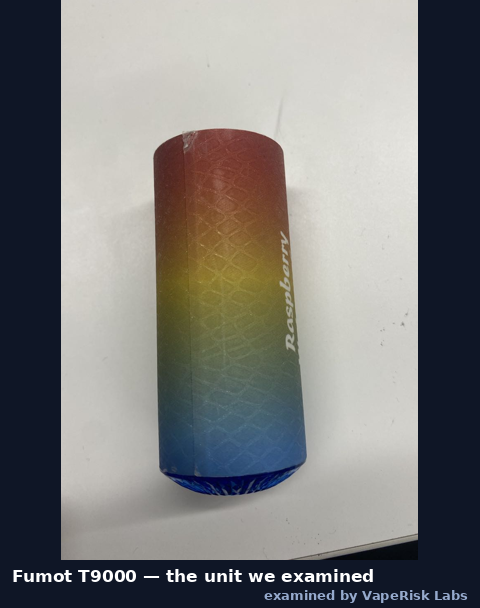

This examination was carried out by VapeRisk Labs. We disassembled a Fumot T9000 to the component level, photographed each part, and recorded materials, dimensions, and electrical behaviour on the bench. The findings above describe the specific unit we examined. Manufacturer figures are labelled claimed; bench figures are labelled measured or estimated.
FAQ
Is the Fumot T9000 battery really 650 mAh?
The device is marked 650 mAh, but the cell inside the unit we examined is an 18250 rated 600 mAh.
Is the Fumot T9000 reusable or a disposable?
It’s marketed as a 2+10, but once the 10 mL bottle is assembled into the device it can’t be pulled back out — so on the unit we examined it behaves like a one-time device rather than a re-dockable refill.
How much e-liquid does the Fumot T9000 hold?
We measured roughly 16 mL of total capacity on this unit (about a 10 mL refill bottle plus a ~6 mL internal reservoir). That’s more than the “2+10” label implies; we report the measured volume only.
Does the Fumot T9000 keep the same power throughout?
No — it uses a constant-average-voltage drive, so output sags as the cell drains (we measured about 11.6 W at full charge, dropping from there).
What protections does it have?
On the unit we examined the board carried short-circuit protection, an over-puff cut-off (~10 s), an over-voltage chip and an under-voltage cut-off. This describes the unit we disassembled, not a rating for the brand.
How do you install the FUMOT T9000 refill container?
FUMOT’s official manual shows removing the silicone suction nozzle and placing the supplied refill container into the pod. It does not show an open-fill procedure using bottled e-liquid. Match the exact T9000 package and do not puncture, inject or force the parts.
Can you replace the FUMOT T9000 cartridge after it is installed?
FUMOT uses “Replaceable Cartridge” wording, but the container on the one unit VapeRisk examined locked into the assembly and could not be pulled back out. A current revision or regional SKU map is needed before treating every T9000 as re-dockable. Do not transfer instructions from T9000 Pro Max, T7000 or another FUMOT family.
